OAI CN5G¶

Author: Aditya Koranga & Shubham Kumar

Published: March 09, 2023

This repository provides guidance for deploying the OpenAirInterface (OAI) 5G Core (CN5G).

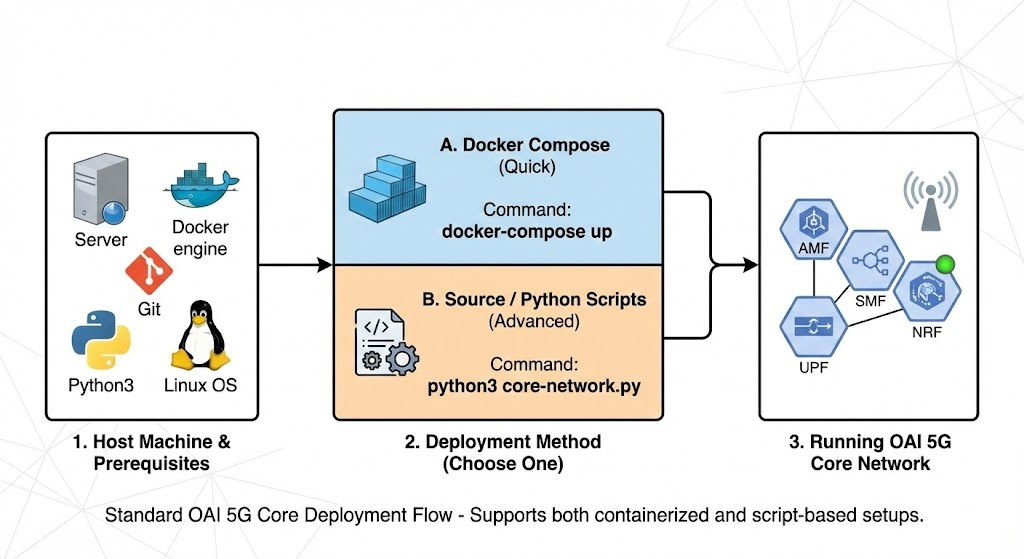

oai cn5g deployment flow

For the official documentation, please refer to the OAI 5G Core Deployment Guide.

Note: This documentation is a replica of the README available at the github/ngkore/OAI-CN5G. Please refer to the original repository for the most up-to-date information.

1. System Preparation¶

Perform these steps regardless of which deployment method you choose.

1.1 Hardware Requirements¶

Ensure your machine meets the following specifications:

Component	Minimum Specification	Recommended Specification
OS	Ubuntu 22.04 LTS	Ubuntu 22.04 LTS
CPU	4 cores	8 cores x86_64 @ 3.5 GHz
RAM	16 GB	32 GB
Network	1 Interface	2 Interfaces

1.2 Install Pre-requisites & Docker¶

Update your system and install the necessary tools and Docker engine.

# 1. Update and install basic tools
sudo apt update
sudo apt install -y git net-tools putty unzip ca-certificates curl

# 2. Add Docker's official GPG key
sudo install -m 0755 -d /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg -o /etc/apt/keyrings/docker.asc
sudo chmod a+r /etc/apt/keyrings/docker.asc

# 3. Add the repository to Apt sources
echo "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] https://download.docker.com/linux/ubuntu $(. /etc/os-release && echo "$VERSION_CODENAME") stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

# 4. Install Docker packages
sudo apt update
sudo apt install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin docker-compose

# 5. Add current user to docker group (avoids using sudo for docker)
sudo usermod -a -G docker $(whoami)

Tip: Log out and back in to apply group changes or run su - $USER to start a new session.

1.3 Enable IP Forwarding¶

This is required for the core network functions to route traffic correctly.

sudo sysctl net.ipv4.conf.all.forwarding=1
sudo iptables -P FORWARD ACCEPT

2. Deployment Options¶

Choose one of the following methods.

Option A: Quick Start (Docker Compose)¶

Use this method for a fast, pre-packaged tutorial setup.

1. Download Configuration Files

wget -O ~/oai-cn5g.zip https://gitlab.eurecom.fr/oai/openairinterface5g/-/archive/develop/openairinterface5g-develop.zip?path=doc/tutorial_resources/oai-cn5g
unzip ~/oai-cn5g.zip
mv ~/openairinterface5g-develop-doc-tutorial_resources-oai-cn5g/doc/tutorial_resources/oai-cn5g ~/oai-cn5g
rm -r ~/openairinterface5g-develop-doc-tutorial_resources-oai-cn5g ~/oai-cn5g.zip

2. Pull Images & Start

cd ~/oai-cn5g
docker compose pull
docker compose up -d

Stop the Network

cd ~/oai-cn5g
docker compose down

Option B: Advanced Source Deployment (python wrapper)¶

Use this method if you need to patch configurations, develop features, or use the OAI python wrapper scripts.

1. Clone the Repository

git clone https://gitlab.eurecom.fr/oai/cn5g/oai-cn5g-fed.git
cd oai-cn5g-fed/
git checkout v2.0.1

2. Sync Components

This pulls the submodule references for the specific network functions.

./scripts/syncComponents.sh

3. Apply Configuration Patches

You need to update the nrf config and the mysql database initialization to ensure consistent user profiles.

Method A: Apply via Git (Recommended)

If you have the patch file ready:

git apply patch-files/oai-cn5g-fed.patch

Method B: Manual Edit

If you want to manually edit the files, make the following changes:

diff --git a/docker-compose/conf/basic_nrf_config.yaml b/docker-compose/conf/basic_nrf_config.yaml
index c55f7c9..acbf4d2 100644
--- a/docker-compose/conf/basic_nrf_config.yaml
+++ b/docker-compose/conf/basic_nrf_config.yaml
@@ -222,7 +222,7 @@ upf:
   support_features:
     enable_bpf_datapath: no    # If "on": BPF is used as datapath else simpleswitch is used, DEFAULT= off
     enable_snat: yes           # If "on": Source natting is done for UE, DEFAULT= off
-  remote_n6_gw: localhost      # Dummy host since simple-switch does not use N6 GW
+  remote_n6_gw: 127.0.0.1      # Dummy host since simple-switch does not use N6 GW
   smfs:
     - host: oai-smf            # To be used for PFCP association in case of no-NRF
   upf_info:
diff --git a/docker-compose/database/oai_db2.sql b/docker-compose/database/oai_db2.sql
index 35cb957..f854dc1 100755
--- a/docker-compose/database/oai_db2.sql
+++ b/docker-compose/database/oai_db2.sql
@@ -77,6 +77,7 @@ CREATE TABLE `AccessAndMobilitySubscriptionData` (
 ) ENGINE=InnoDB DEFAULT CHARSET=utf8;

 INSERT INTO `AccessAndMobilitySubscriptionData` (`ueid`, `servingPlmnid`, `nssai`) VALUES
+('208950000000031', '20895','{\"defaultSingleNssais\": [{\"sst\": 1, \"sd\": \"0xffffff\"}]}'),
 ('208950000000125', '20895','{\"defaultSingleNssais\": [{\"sst\": 1, \"sd\": \"1\"}]}'),
 ('208950000000126', '20895','{\"defaultSingleNssais\": [{\"sst\": 1, \"sd\": \"1\"}]}'),
 ('208950000000127', '20895','{\"defaultSingleNssais\": [{\"sst\": 1, \"sd\": \"1\"}]}'),
@@ -311,7 +312,7 @@ CREATE TABLE `SessionManagementSubscriptionData` (
 --

 INSERT INTO `SessionManagementSubscriptionData` (`ueid`, `servingPlmnid`, `singleNssai`, `dnnConfigurations`) VALUES
-('208950000000031', '20895', '{\"sst\": 222, \"sd\": \"123\"}','{\"default\":{\"pduSessionTypes\":{ \"defaultSessionType\": \"IPV4\"},\"sscModes\": {\"defaultSscMode\": \"SSC_MODE_1\"},\"5gQosProfile\": {\"5qi\": 6,\"arp\":{\"priorityLevel\": 1,\"preemptCap\": \"NOT_PREEMPT\",\"preemptVuln\":\"NOT_PREEMPTABLE\"},\"priorityLevel\":1},\"sessionAmbr\":{\"uplink\":\"100Mbps\", \"downlink\":\"100Mbps\"},\"staticIpAddress\":[{\"ipv4Addr\": \"12.1.1.4\"}]}}');
+('208950000000031', '20895', '{\"sst\": 1, \"sd\": \"0xffffff\"}','{\"oai\":{\"pduSessionTypes\":{ \"defaultSessionType\": \"IPV4\"},\"sscModes\": {\"defaultSscMode\": \"SSC_MODE_1\"},\"5gQosProfile\": {\"5qi\": 6,\"arp\":{\"priorityLevel\": 1,\"preemptCap\": \"NOT_PREEMPT\",\"preemptVuln\":\"NOT_PREEMPTABLE\"},\"priorityLevel\":1},\"sessionAmbr\":{\"uplink\":\"100Mbps\", \"downlink\":\"100Mbps\"},\"staticIpAddress\":[{\"ipv4Addr\": \"12.1.1.4\"}]}}');
 INSERT INTO `SessionManagementSubscriptionData` (`ueid`, `servingPlmnid`, `singleNssai`, `dnnConfigurations`) VALUES
 ('208950000000032', '20895', '{\"sst\": 222, \"sd\": \"123\"}','{\"default\":{\"pduSessionTypes\":{ \"defaultSessionType\": \"IPV4\"},\"sscModes\": {\"defaultSscMode\": \"SSC_MODE_1\"},\"5gQosProfile\": {\"5qi\": 6,\"arp\":{\"priorityLevel\": 1,\"preemptCap\": \"NOT_PREEMPT\",\"preemptVuln\":\"NOT_PREEMPTABLE\"},\"priorityLevel\":1},\"sessionAmbr\":{\"uplink\":\"100Mbps\", \"downlink\":\"100Mbps\"}}}');
 -- --------------------------------------------------------

4. Deploy the Core

Use the Python wrapper script to start the “Basic” scenario (AMF, SMF, UPF, NRF).

cd docker-compose

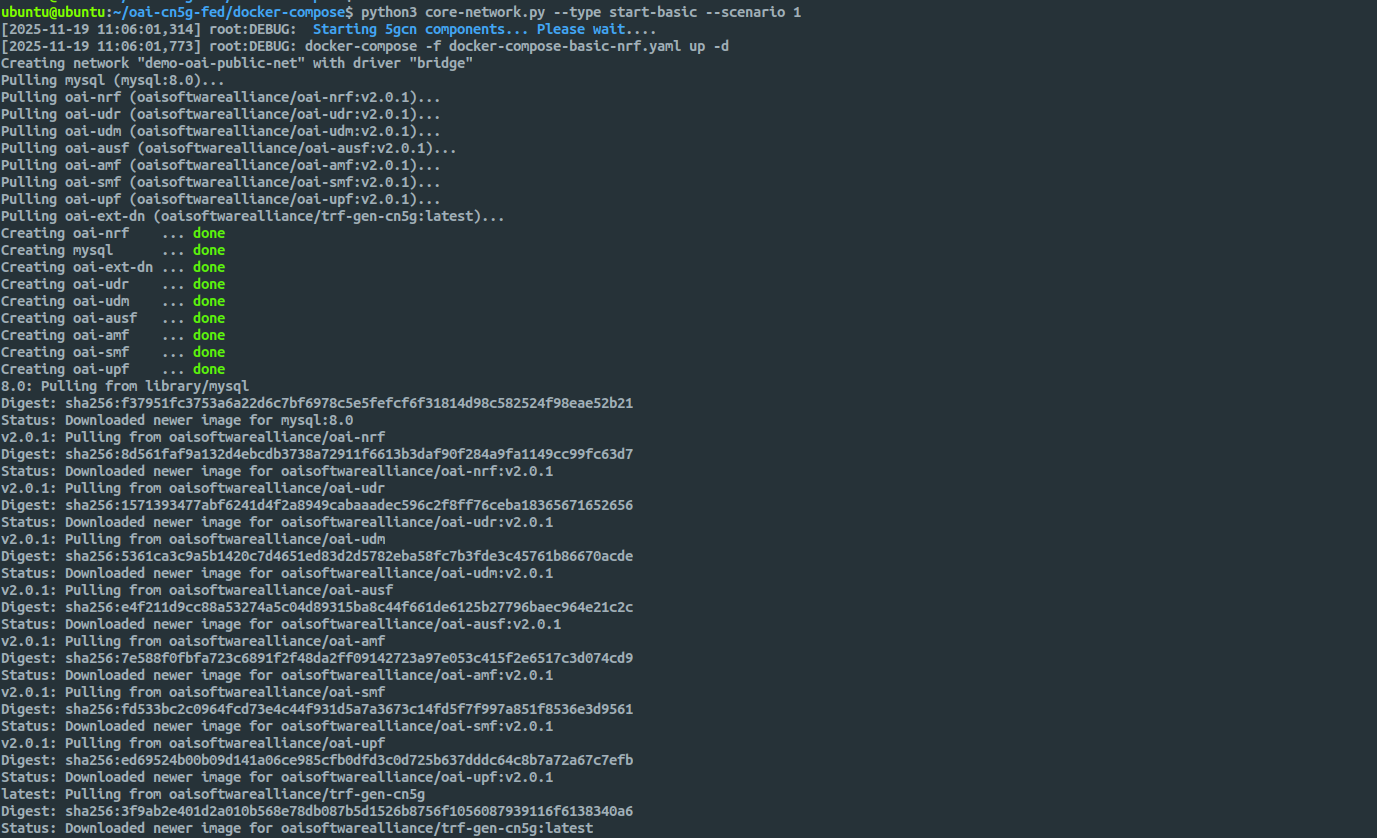

python3 core-network.py --type start-basic --scenario 1

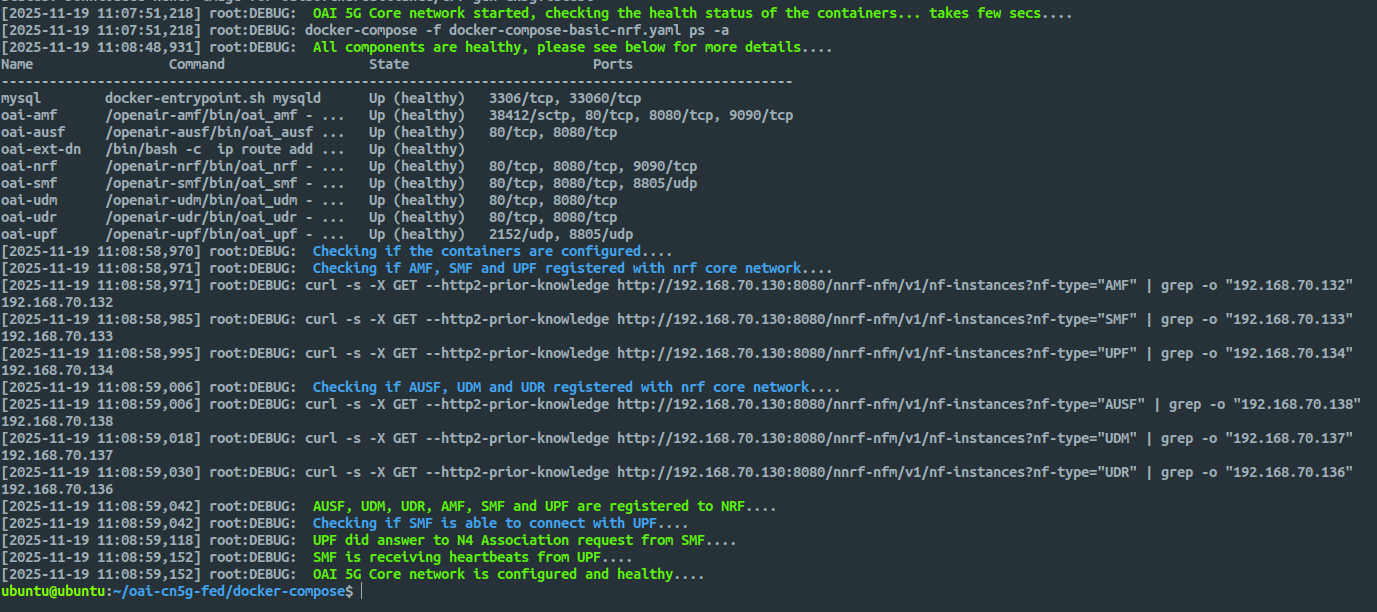

basic deployment

Stop the Core

python3 core-network.py --type stop-basic --scenario 1

Warning: Do not abruptly power off your VM. Sudden shutdowns can corrupt NRF registration state and cause inconsistent network-function discovery. Always stop the core properly before shutting down the machine.

Follow the ngkore/OAI-RAN guide to build and configure the RAN components (gNB and nrUE).
