srsRAN Open5GS

Author: Shankar Malik

Published: January 15, 2026

This repository documents a complete end-to-end 5G standalone (SA) setup using:

  • Open5GS as the 5G Core (Docker-based)

  • srsRAN Project as the 5G gNB

  • srsRAN 4G (srsUE) as the UE

  • ZeroMQ as a virtual RF interface (no SDR required)

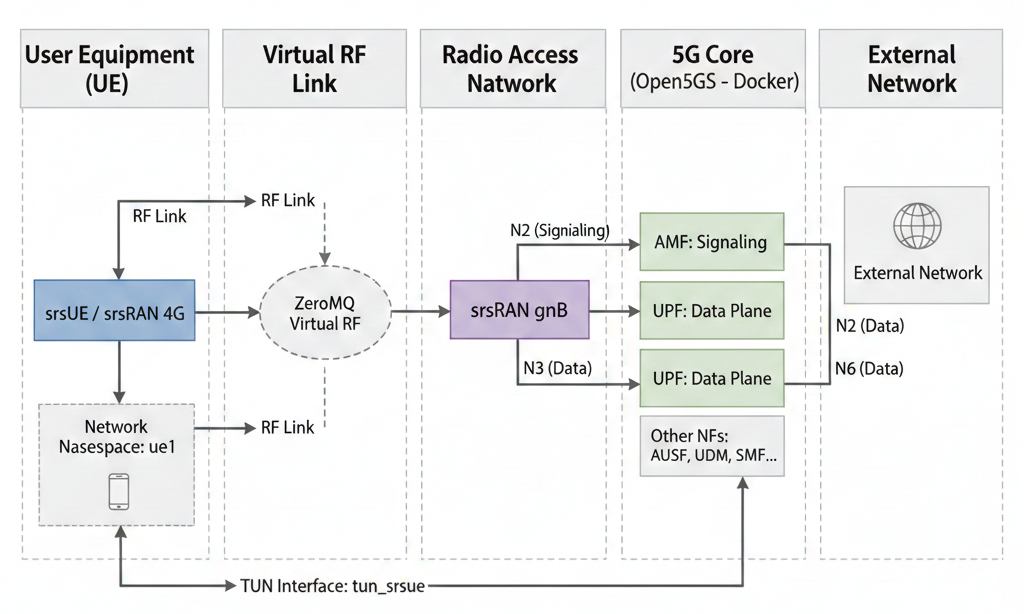

srsran open5gs

This setup is intended for testing, learning, and research, and runs entirely on a single Ubuntu VM.

Note: This documentation is a replica of the README available at the github/ngkore/Open5GS-srsRAN. Please refer to the original repository for the most up-to-date information.

Reference Documentation

Architecture Overview

+-----------------------------+
|        Ubuntu 22.04 VM      |
|                             |
|  +----------------------+   |
|  |  Open5GS 5G Core     |   |
|  |  (Docker Compose)    |   |
|  +----------+-----------+   |
|             | N2 / N3       |
|  +----------v-----------+   |
|  |   srsRAN gNB         |   |
|  |   (ZMQ RF)           |   |
|  +----------+-----------+   |
|             | ZMQ           |
|  +----------v------------+  |
|  |   srsUE               |  |
|  |   (Network Namespace) |  |
|  +-----------------------+  |
+-----------------------------+

Hardware and Software Requirements

System

  • Ubuntu 22.04.1 LTS

  • Single VM or bare-metal system

  • Internet access

Software Components

  • Open5GS (Docker-based 5G Core)

  • srsRAN Project (5G gNB)

  • srsRAN 4G (23.11 or later) (srsUE)

  • ZeroMQ (virtual RF transport)

Prerequisites

System Packages

sudo apt update
sudo apt install -y git net-tools build-essential cmake \
                   libfftw3-dev libmbedtls-dev \
                   libboost-program-options-dev \
                   libconfig++-dev libsctp-dev \
                   libyaml-cpp-dev libgtest-dev \
                   libzmq3-dev

Docker Installation (for Open5GS)

sudo apt install -y ca-certificates curl
sudo install -m 0755 -d /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg \
  -o /etc/apt/keyrings/docker.asc
sudo chmod a+r /etc/apt/keyrings/docker.asc

echo "deb [arch=$(dpkg --print-architecture) \
signed-by=/etc/apt/keyrings/docker.asc] \
https://download.docker.com/linux/ubuntu \
$(. /etc/os-release && echo "$VERSION_CODENAME") stable" | \
sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

sudo apt update
sudo apt install -y docker-ce docker-ce-cli \
                   containerd.io docker-buildx-plugin \
                   docker-compose-plugin

Add your user to the Docker group:

sudo usermod -aG docker $(whoami)
newgrp docker

Build srsRAN 4G (for srsUE)

cd ~
git clone https://github.com/srsRAN/srsRAN_4G.git
cd srsRAN_4G
mkdir build && cd build

cmake ../ -DENABLE_EXPORT=ON -DENABLE_ZEROMQ=ON
make -j$(nproc)
make test   # optional

Build srsRAN Project (for 5G gNB)

cd ~
git clone https://github.com/srsran/srsRAN_Project.git
cd srsRAN_Project
mkdir build && cd build

cmake ../ -DENABLE_EXPORT=ON -DENABLE_ZEROMQ=ON
make -j$(nproc)

Deploy Open5GS 5G Core (Docker)

cd ~/srsRAN_Project/docker
docker compose up --build 5gc -d

Verify containers:

docker ps
docker logs -f open5gs_5gc

Configuration Files (ZMQ)

Download reference configuration files:

cd ~
wget https://docs.srsran.com/projects/project/en/latest/_downloads/a7c34dbfee2b765503a81edd2f02ec22/gnb_zmq.yaml
wget https://docs.srsran.com/projects/project/en/latest/_downloads/fbb79b4ff222d1829649143ca4cf1446/ue_zmq.conf

Run srsRAN gNB

cd ~/srsRAN_Project/build/apps/gnb
sudo ./gnb -c ~/gnb_zmq.yaml

Ensure the gNB successfully:

  • Connects to AMF

  • Starts NGAP and GTP-U

Run srsUE (with Network Namespace)

Create UE network namespace:

sudo ip netns add ue1
ip netns list

Run srsUE:

cd ~/srsRAN_4G/build/srsue/src

sudo ./srsue ~/ue_zmq.conf

Or explicitly via ZMQ arguments:

sudo ./srsue \
  --rf.device_name=zmq \
  --rf.device_args="tx_port=tcp://*:2001,rx_port=tcp://localhost:2000,id=ue,base_srate=23.04e6" \
  --gw.netns=ue1

Routing Configuration

UE Namespace Routing

sudo ip netns exec ue1 ip route add default via 10.45.1.1 dev tun_srsue
sudo ip netns exec ue1 ip route

Connectivity Test

Tutorial Video

Open5GS srsRAN E2E Deployment Tutorial
